Evolution Aqua evoUV 25w Ultraviolet Clarifier

Professional ultraviolet clarifiers for ponds

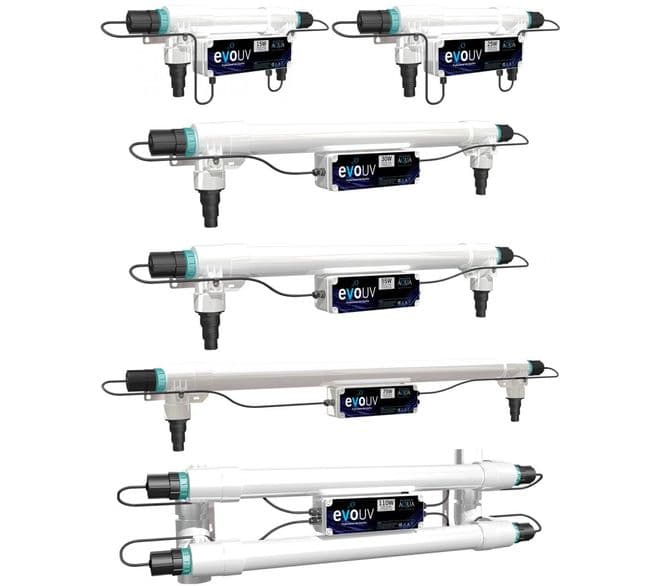

Evolution Aqua evoUV Ultraviolet Clarifier have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.

One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do.

The evoUV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.

Installing the evoUV

PUMP-FED INSTALLATION

Install evoUV before the filter on the pipework run from the pond

GRAVITY-FED INSTALLATION

Install evoUV after the filter on the return to pond pipework run.

How the evoUV works

The evoUV range of clarifiers from evolution aqua have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evoUV will help to deliver crystal clear and healthy pond water.

Your evoUV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.

1. What does and ultra violet clarifier do?

UV Clarifiers clear green water which is caused by single celled green algae and prevent it from returning.

2. Where do I install the UVC?

Usually the UVC will be the first piece of equipment after the circulation pump. On a pump fed filtration system this means the UVC will be installed before the pond filter, and on a gravity fed filter after the circulation pump that returns the water to the pond.

3. What is the length of the power cable?

The length of the power cable for UK models is 2.2metres.

4. How often do I need to replace the lamp?

We recommend changing the lamp at the beginning of each year.
